How to Change Sheet Set Manager Hover Details

January 27, 2025 Ryan Wunderlich

Applies to:
All AutoCAD-based Products

Issue:
You are working in a Sheet Set and the Hover details are not complete, or you’d like to change what is displayed.


Solution:
Right mouse click in the Sheet set manager, but make sure to not be on any of the sheets or sets.

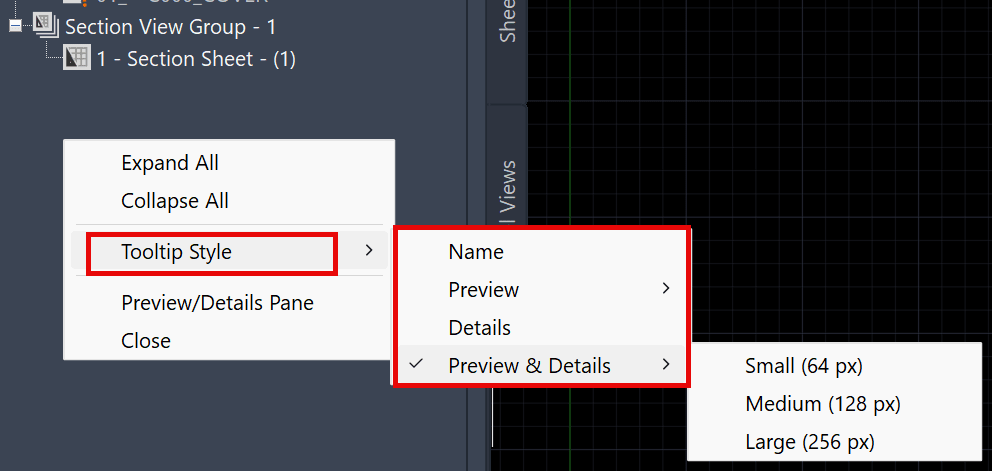

That will bring up a dialog where you can select what you want to display under the Tooltip Style:


If you select Name, it will only show you the name:

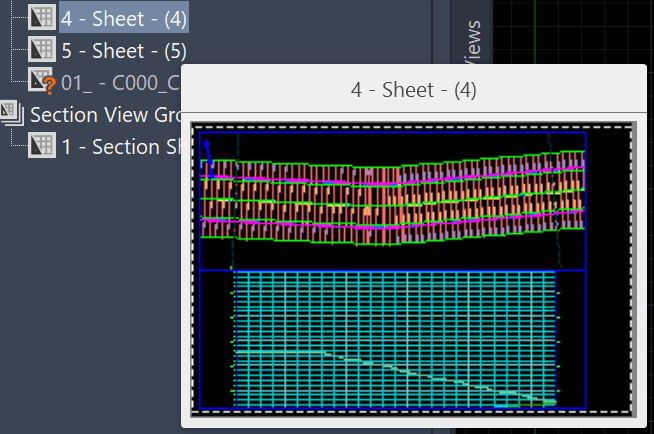

Preview will only show the Sheet image (at the specified size):

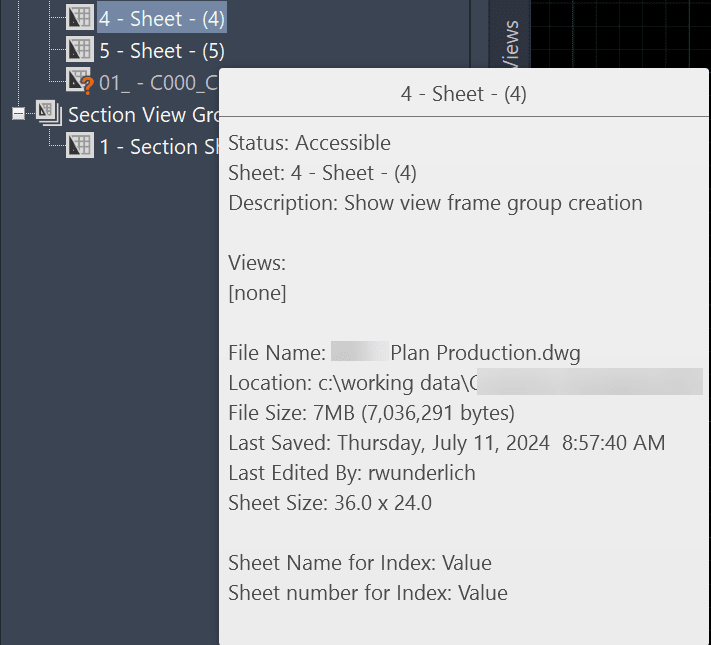

Details will give you all the sheet details, with no picture:


Preview and details will give you the default hover view of the sheets in a sheet set.
