Applies to:
Inventor
Issue:
Adding image logo to title block causes 3rd party link.Â
Causes:
3rd Party link require image to be added as a separate file to the vault.
Solution:
Adding image/logo to title block adds 3rd Party link

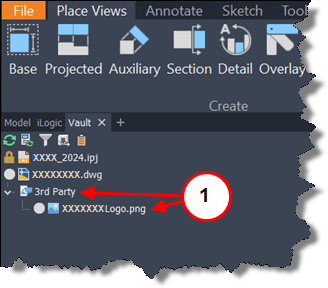

1. Â Â Notice the 3rd Party Link to the image/logo.

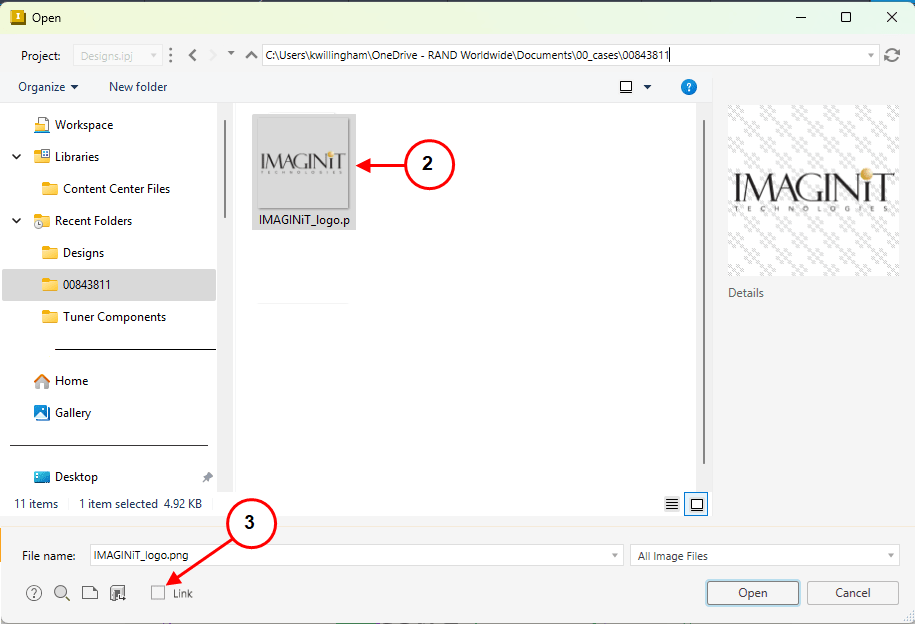

2. Â Â Select the image/logo to be added to the title block.
3. Â Â Make sure the Link box is not selected to have a 3rd Party image link suppressed.

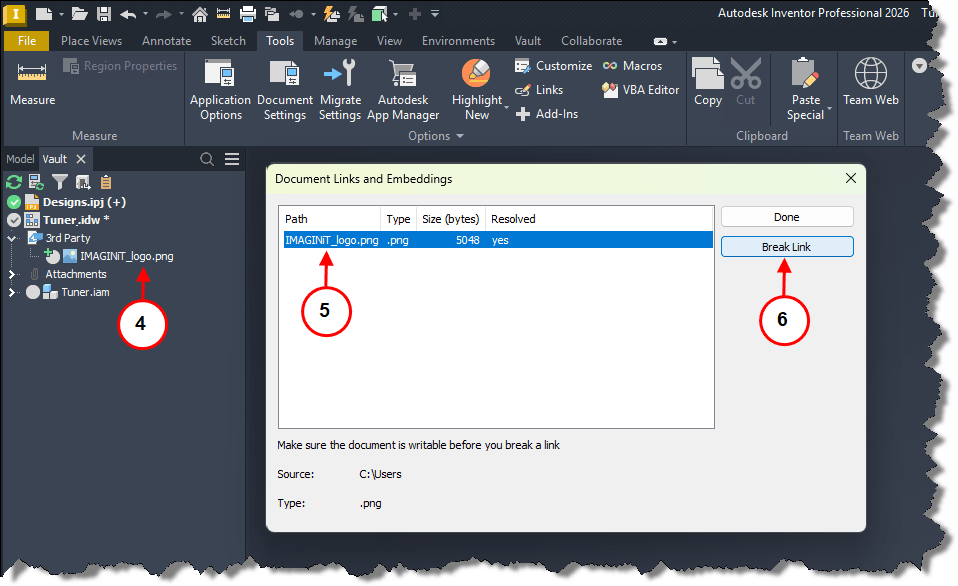

4. Â Â If you need to remove a 3rd Party image as shown.
5. Â Â Select the link that needs to be removed.
6. Â Â Select Break Link. Â
