How is the hpattern_acad field for highlights defined?

November 30, -0001 Tim Schaubroeck

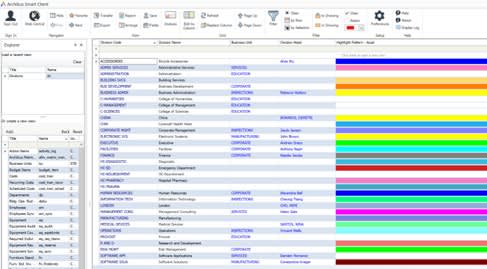

In Archibus, there are several tables for which you can define drawing highlights patterns for, such as the Division and Department tables. This information is stored within the hpattern_acad field of each relevant table, and is presented in a user-readable format in both Web Central and the Smart Client.

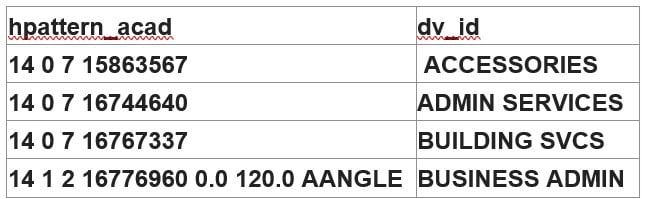

However, if you look at a hpattern_acad field in the actual database, you'll see a value such as these:




These values are actually an encoded format describing the highlight pattern for each field. Here is what each number means, in order:

1st number: The version of the encoding being used. It should always be set to 14.
2nd number: Set to 0 if it is a solid highlight, 1 if it is a hatch highlight, and 3 if it is a gradient highlight.
3rd number: The number of the color if you are using a hard-coded numbered color, a few of which are selectable via Web Central; if using a 'true color' option instead, will be set to 7 for White.
4th number: The concatenated RGB values for the highlight color. The value stored in this location follows this formula: (b + g * 256 + r * 256 * 256) where b, g, and r are the 0-255 blue, green, and red values.

Additionally, If you are using hatch patterns, additional information will be stored in the field:

5th number: The angle of the hatch pattern. Defaults to 0.
6th number: The scale of the hatch pattern. Defaults to different values depending on the hatch pattern selected.
7th value: The code for the hatch pattern being used. A full list of the values available is located in hpattern.properties, which is located in the \archibus\WEB-INF\config\context\controls\drawing folder of Web Central.
