Revit How to Cut a Component Family with an In Place Family

November 1, 2024 Sherry Pittman

This probably isn’t something that comes up very often, but in case it ever does, here is a way that you can cut a component family.

We can’t use a void to cut a family, but we can use an in-place family to cut a component family.


Note:

This may not apply in all family type categories.


Process

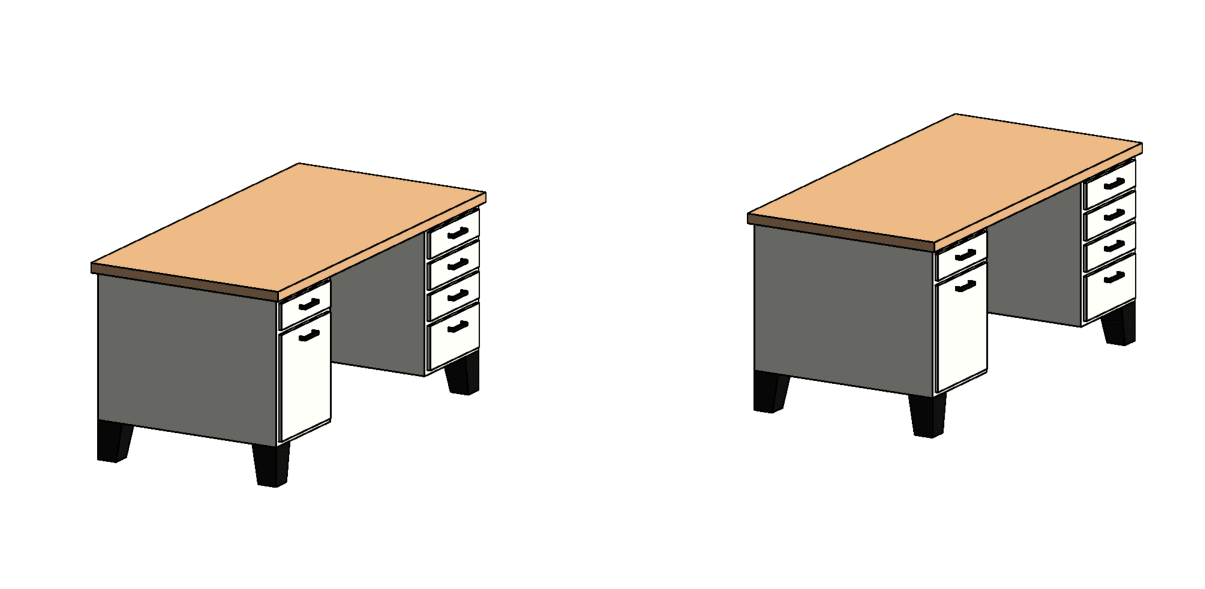

In the example below I placed a couple of out of the box desks in my view

  • I’m going to create a Model in-Place family to cut them with.
  • From the Architecture tab, Build panel, select the arrow under Component, Model In-Place
      •

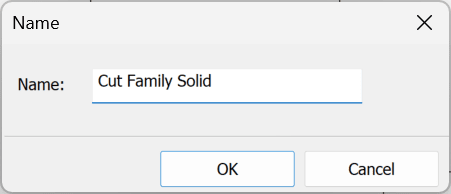

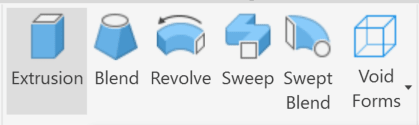

  • Name the family and select Extrusion
    •

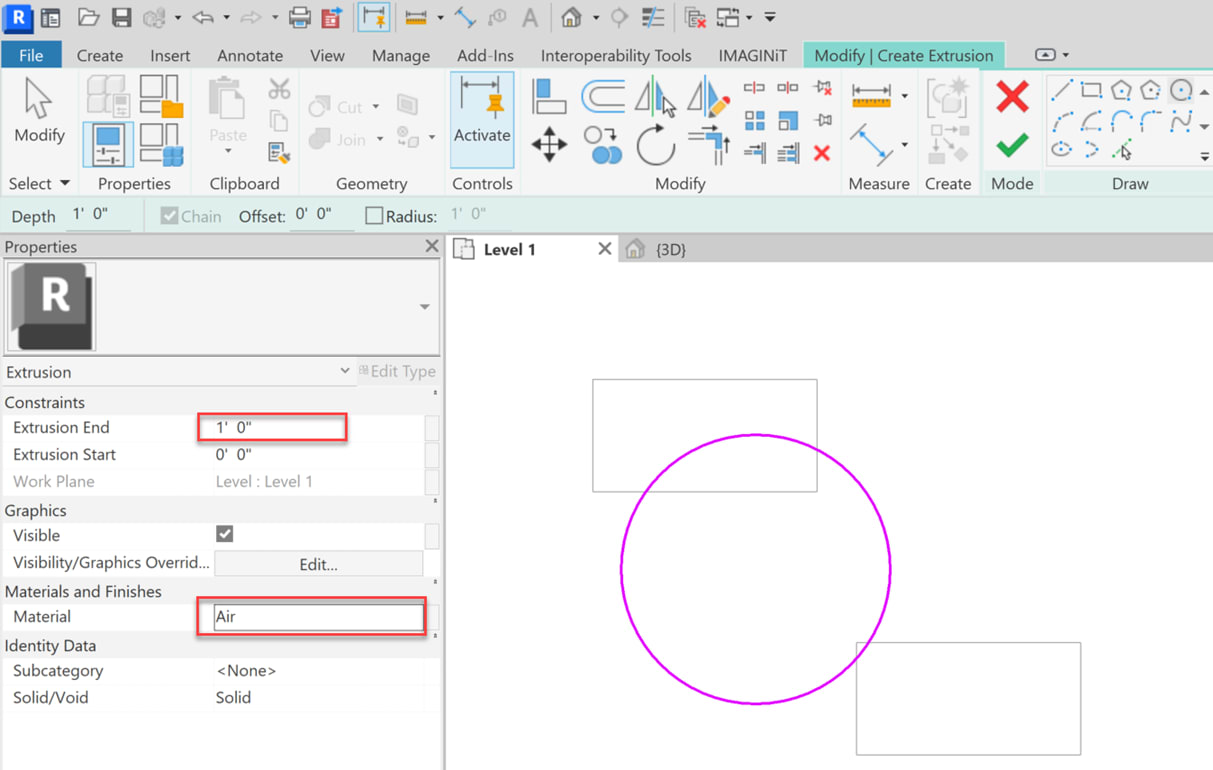

  • Draw the extrusion and define the size and material then finish.
    •
  • To cut the Desks with that solid
    • From the Modify tab, Geometry panel, select the Cut tool
      •
    • Select the item you want to cut (the desk)

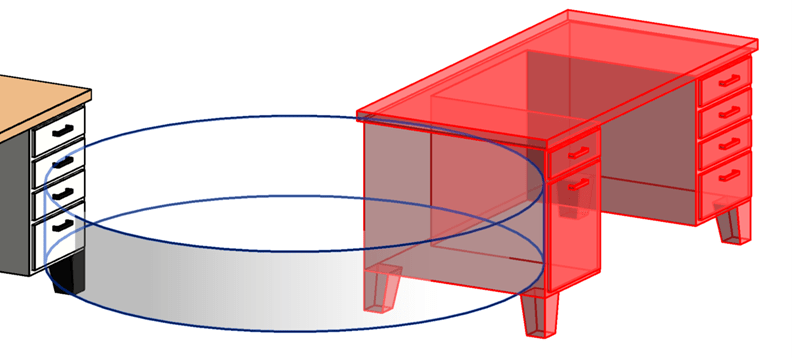

    • Then what you want to cut it with (the cylinder).  Repeat for second desk.
      •

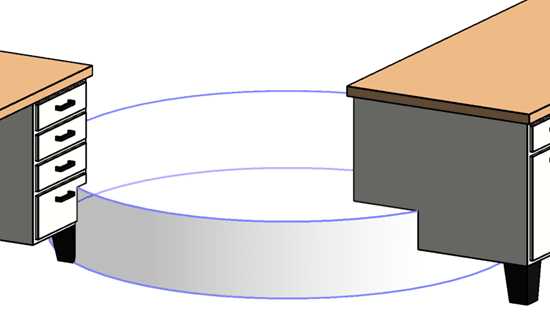

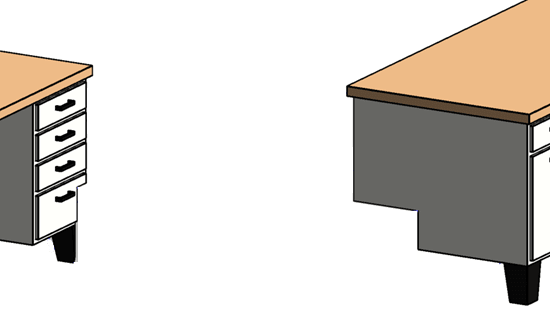

    • The result will look like this
      •
  • You don’t want to see the outline of the cylinder so either right click and hide or a better method is to create a subcategory (in Object Styles) and assign it to the element so you can control it in visibility graphics.
