Inventor-create a composite feature control frame tolerance annotation

September 22, 2025 Joanna Gryszka

Issue:

How to create a GD&T composite feature control frame annotation in Inventor.

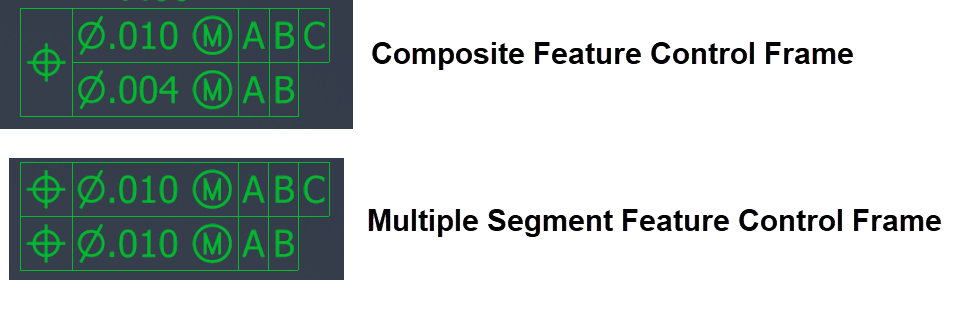

For example, you need to create a composite positional tolerance frame instead of a multi segment feature control frame.

Solution:

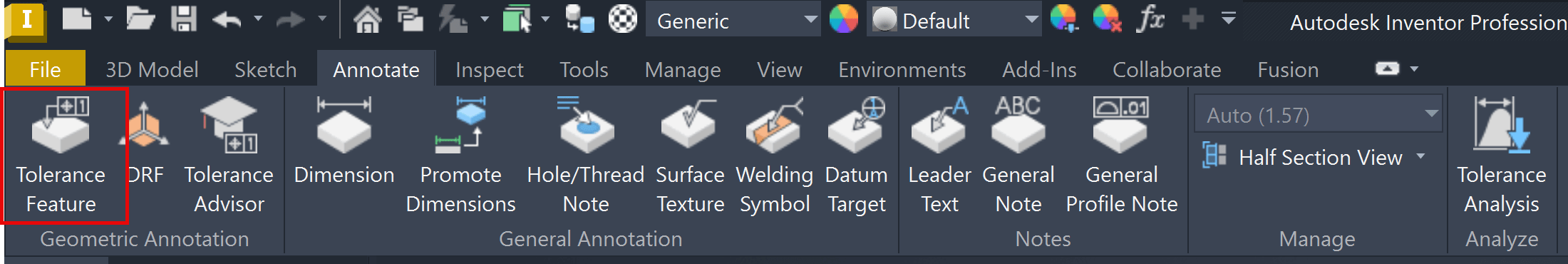

Start the Tolerance Feature command on the Annotate ribbon:

Select the feature the composite tolerance will be attached to.

In this example, the hole pattern requires a composite positional tolerance. Click OK.

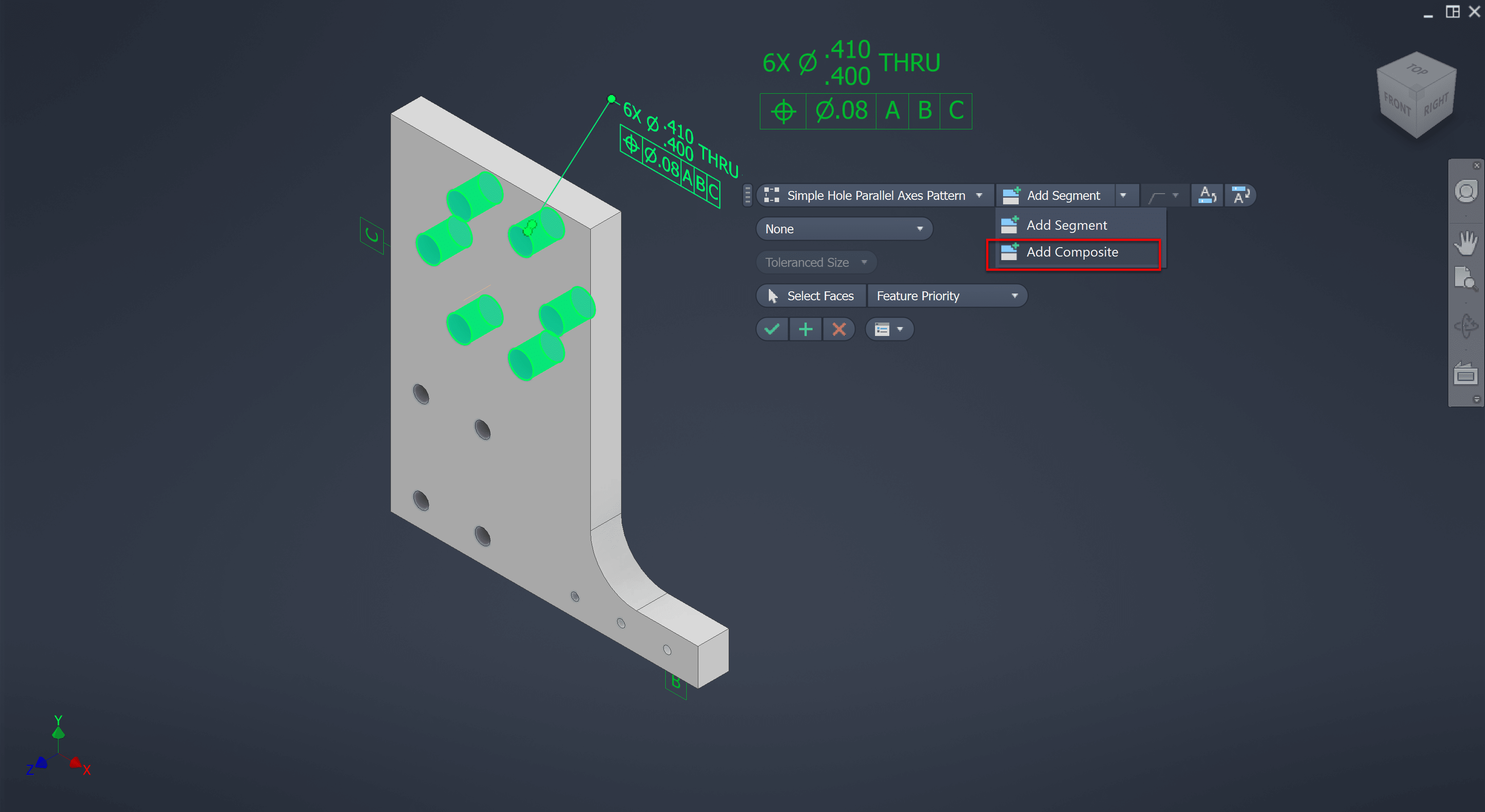

Place the annotation in the graphics window:

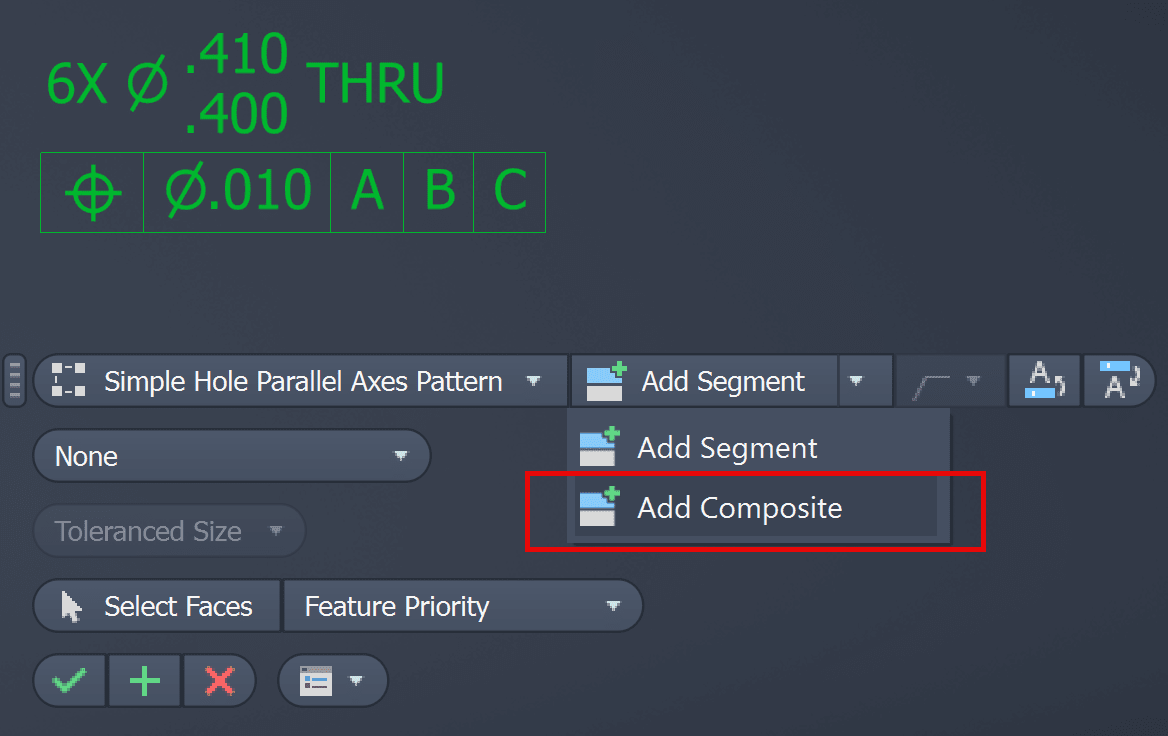

Choose the Add Composite option under Add Segment:

This will add a second segment as a composite instead of multi-segment or stacked tolerance.

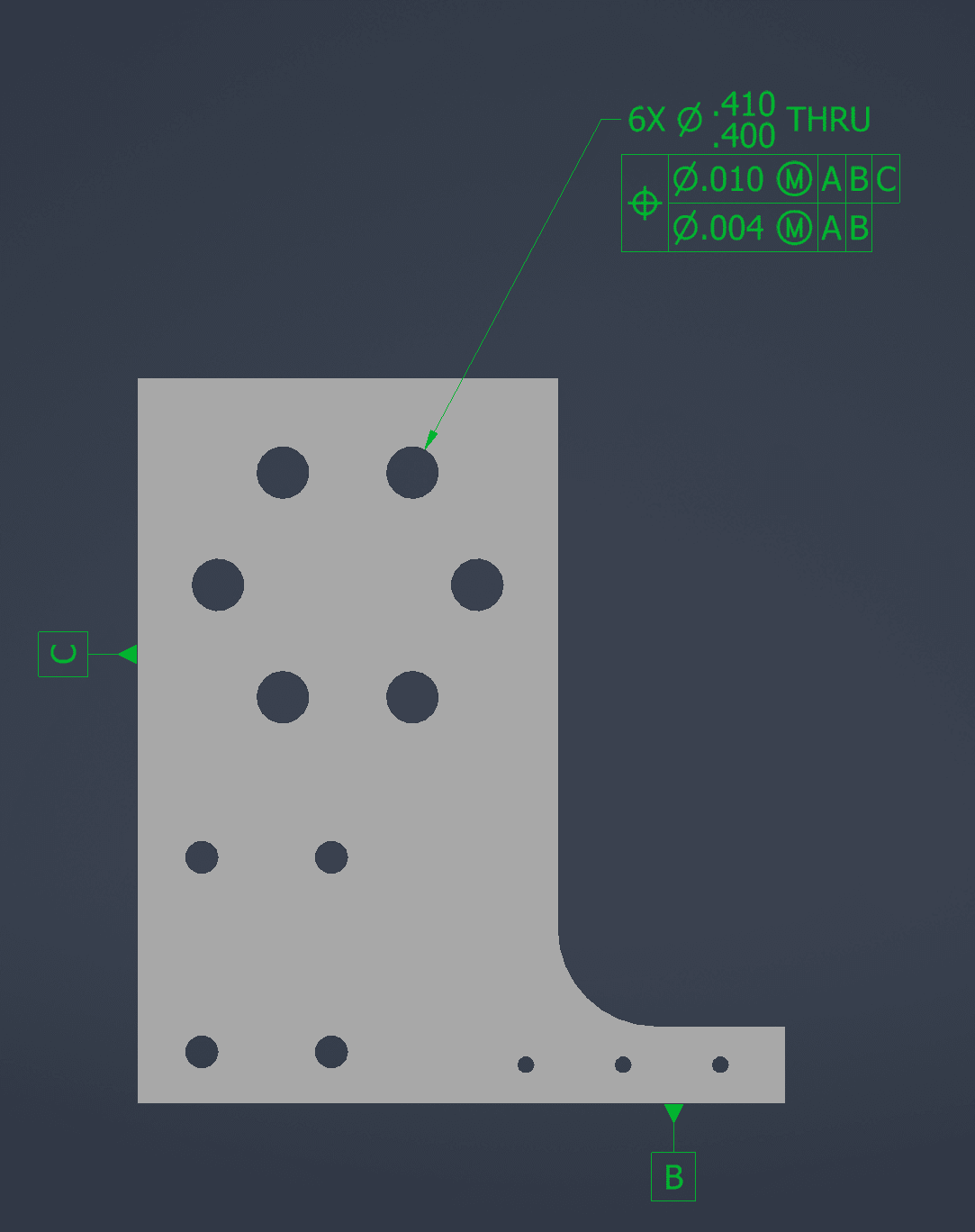

Edit the Feature Control Frame values and datum references as needed and click OK to place the annotation:

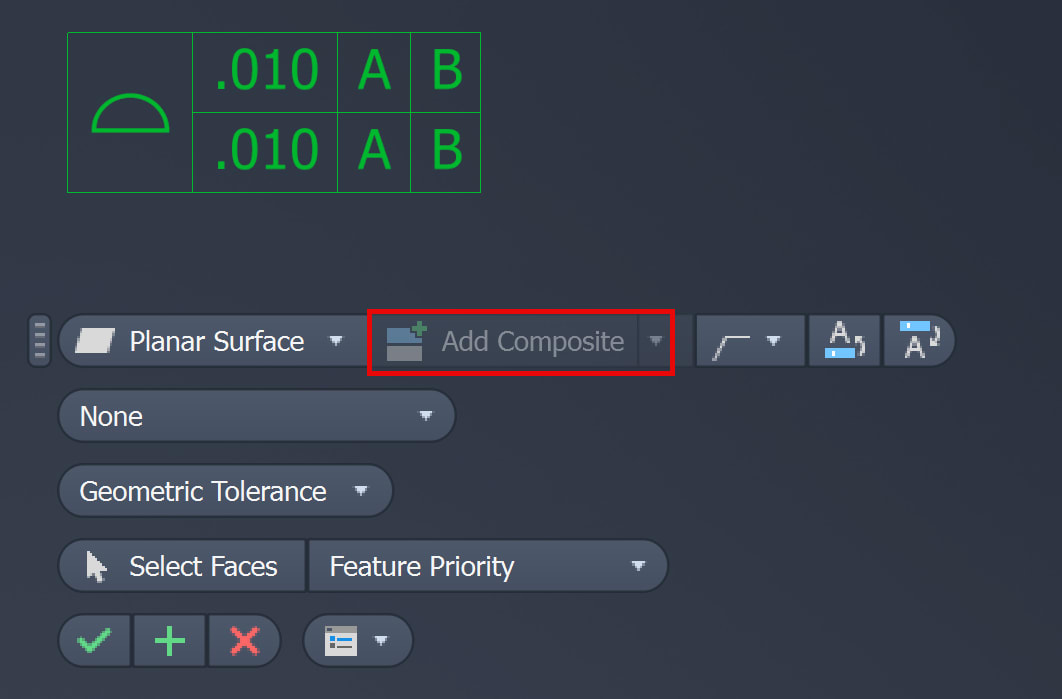

This method applies to composite surface profiles as well. Choose Add Composite to convert a new tolerance segment to a composite:
