Prepare USGS Lidar Data in ReCap for import to Civil 3D

Applies to:

Civil 3D

 Issue:

Need to bring in USGS Lidar data to Civil 3D through ReCap

 Causes:

Lidar data is tough to work with and ReCap is unfamiliar



Solution:

Download .laz or .las file from USGS site.

Open downloaded file in notepad and look for coordinate system in top few lines.

Open ReCap

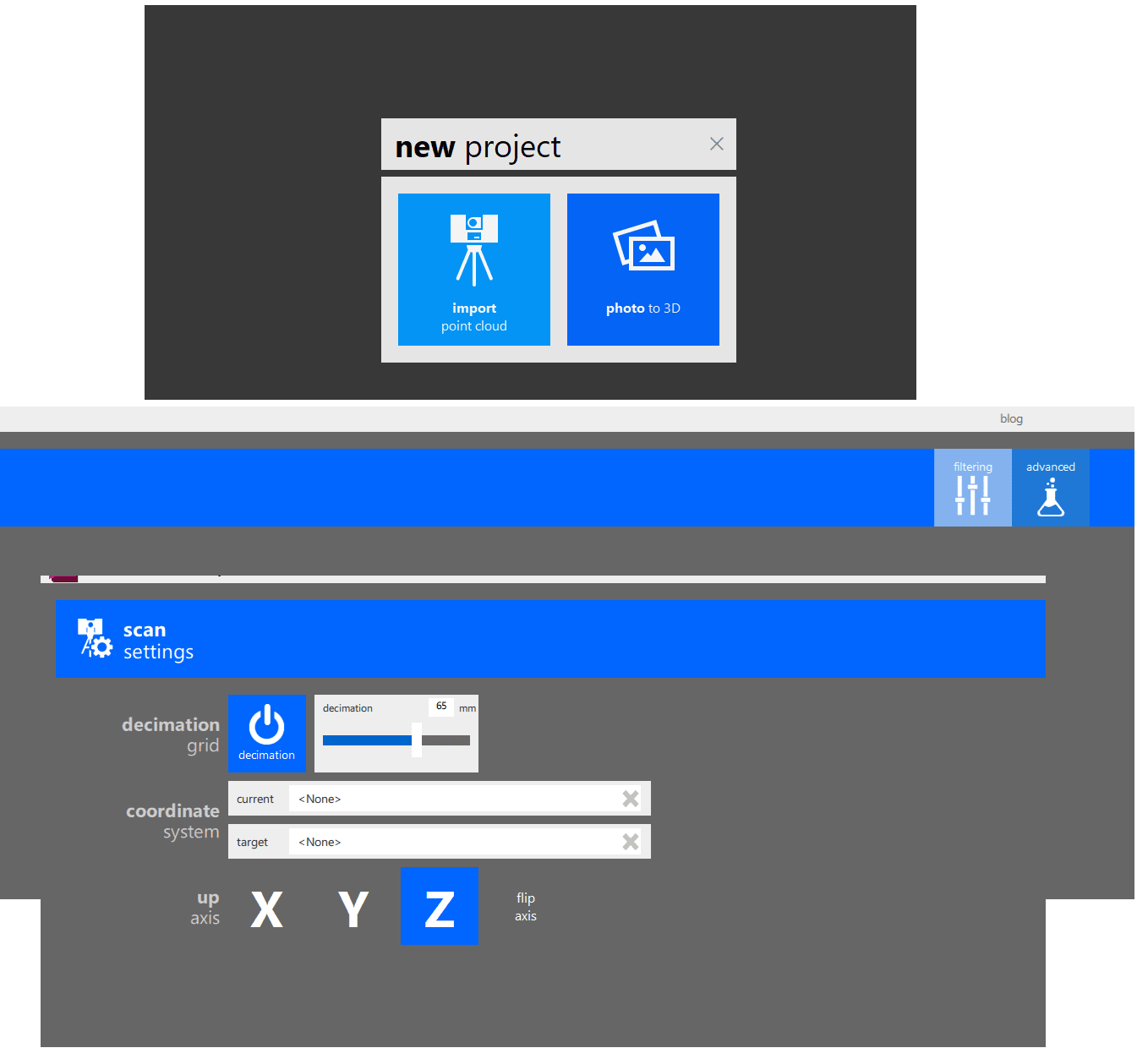

Click 'New Project' in upper right

Click 'Import Point ClLoud', name project and select destination folder.

Click 'Advanced' in upper middle of screen.

Enter current coordinate system from notepad and destination coordinate system.

Click 'Import Files' in lower right.

Click 'Process Scans' in lower right.

Click 'Launch Project' in Lower right.

When processed click 'Automatic Ground Classification'.

Save .RCP Files

Open Civil 3D

Set Coordinate sytem to same as destination in ReCap

Type 'POINTCLOUDATTACH' and browse to RCP File

Do Not check 'Use Geographic location'.

Attach

Select point cloud and select 'Colors' in contextual ribbon and select Classification' to seperate Ground from other points.

Type MAPCREATEPCSURFACE, select surface, click 'Filter' in lower left of dialog box, select path to save tif file, set 'Level of Detail' to simplify a large surface and run surface.

Make sure coordinate system is set.  Go to Toolspace > Surfaces > Create Surface from DEM

Browse to tif file saved in previous step.  Create Surface.

To smooth and simplify surface:

Select Surface and select 'Extract Objects from Surface' in contextual ribbon.

Select Contours and Run.

Erase old surfcae and create new one from contours.
