AutoCAD Electrical: Adding jumpers through Terminal Strip Editor

Adding jumpers through terminal strip editor

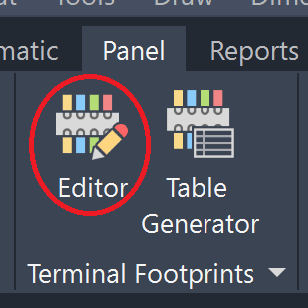

Panel Tab>Terminal Footprints Panel>Editor

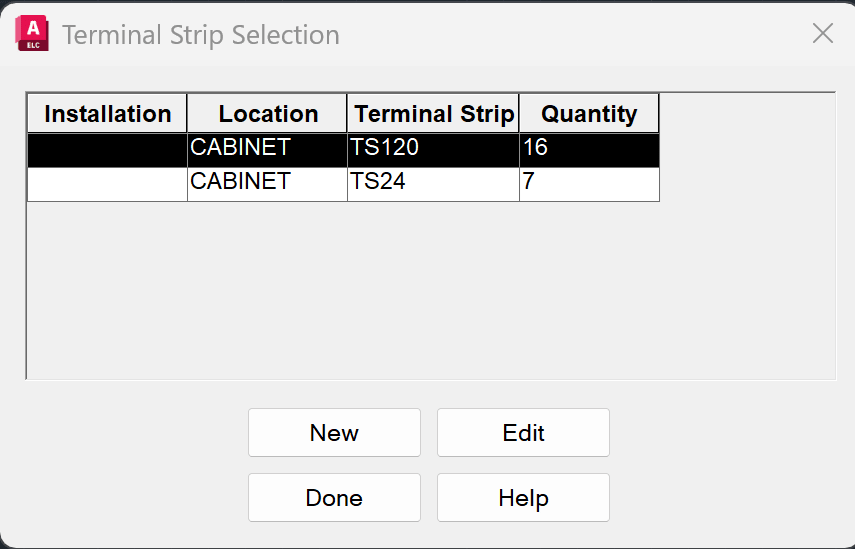

Select one of your Terminal strips>Click Edit

First sort your terminals:

In this case sorting them by Catalog & Type

Highlight the ones that need to be jumped together

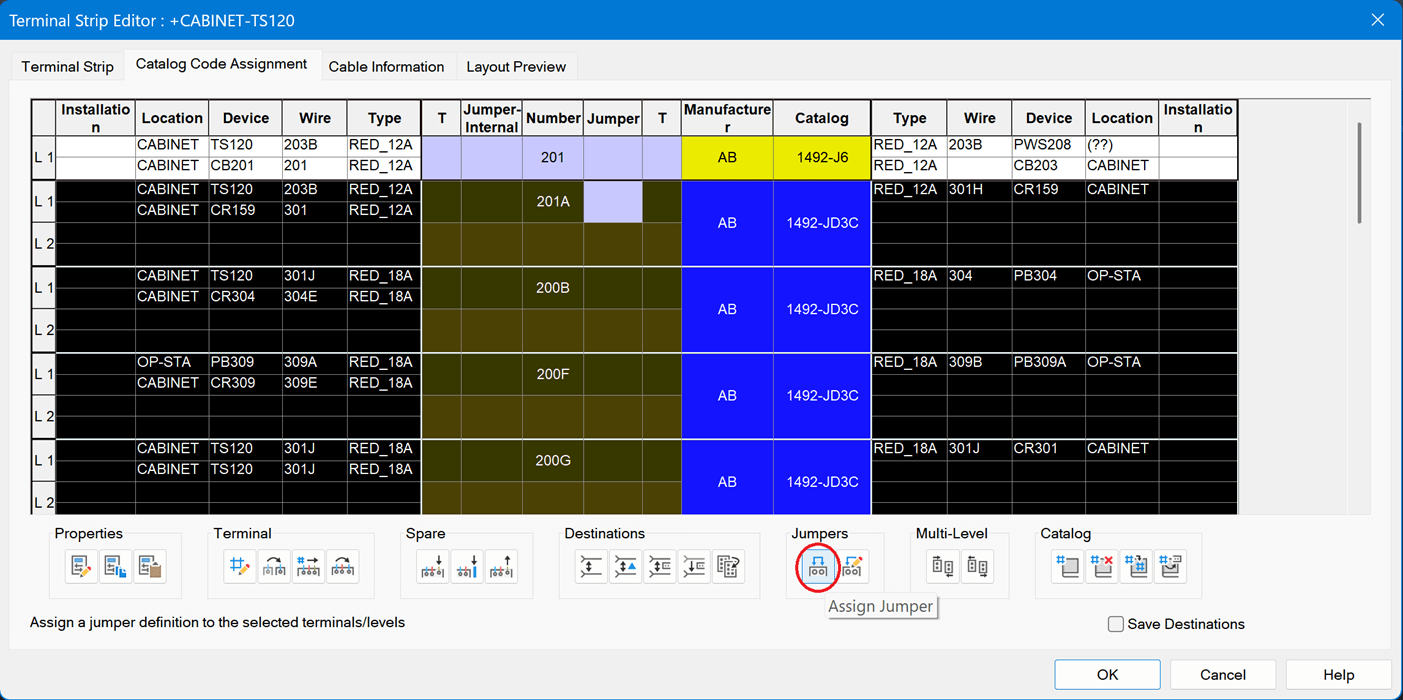

Click on Assign jumper

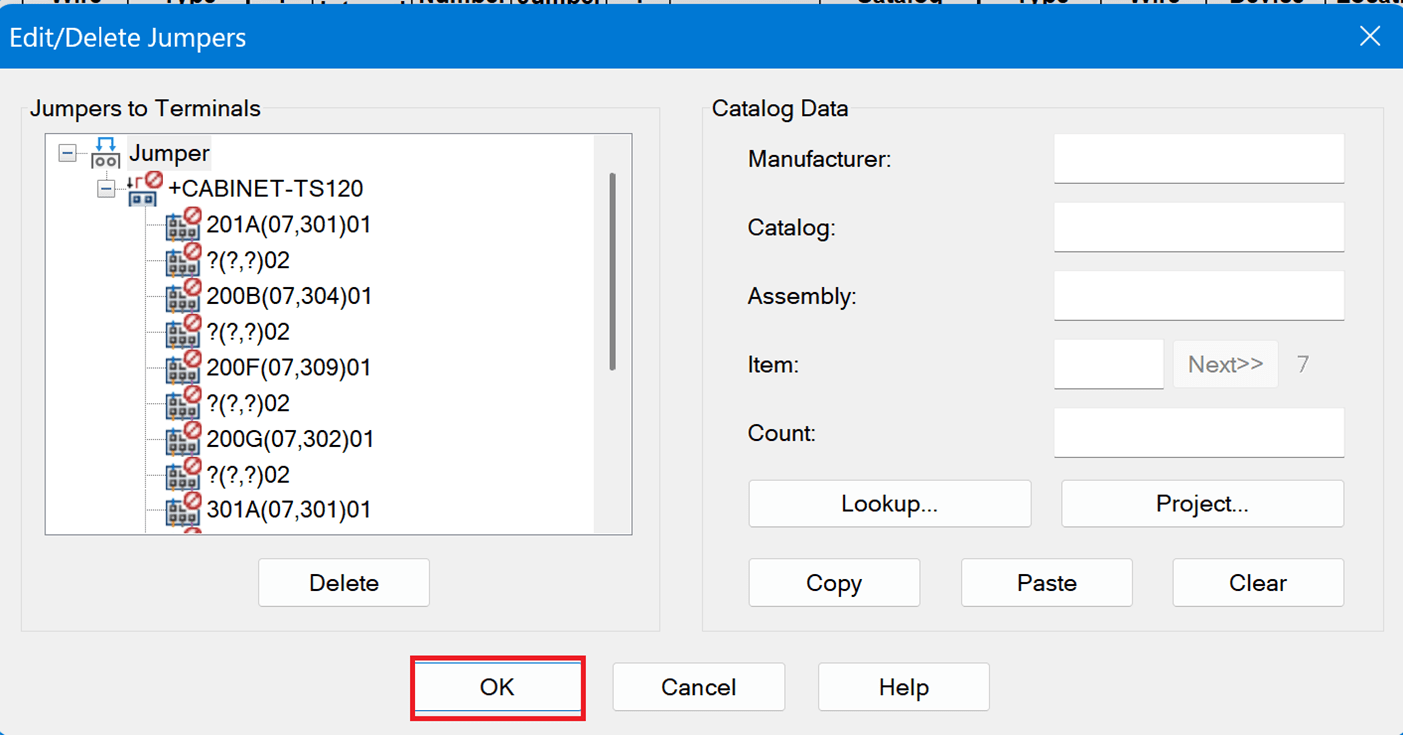

Click ok in Edit/Delete Jumpers

Same as inserting a schematic symbol, there is an option to assign catalog data to the jumper

Click ok in Edit/Delete Jumpers

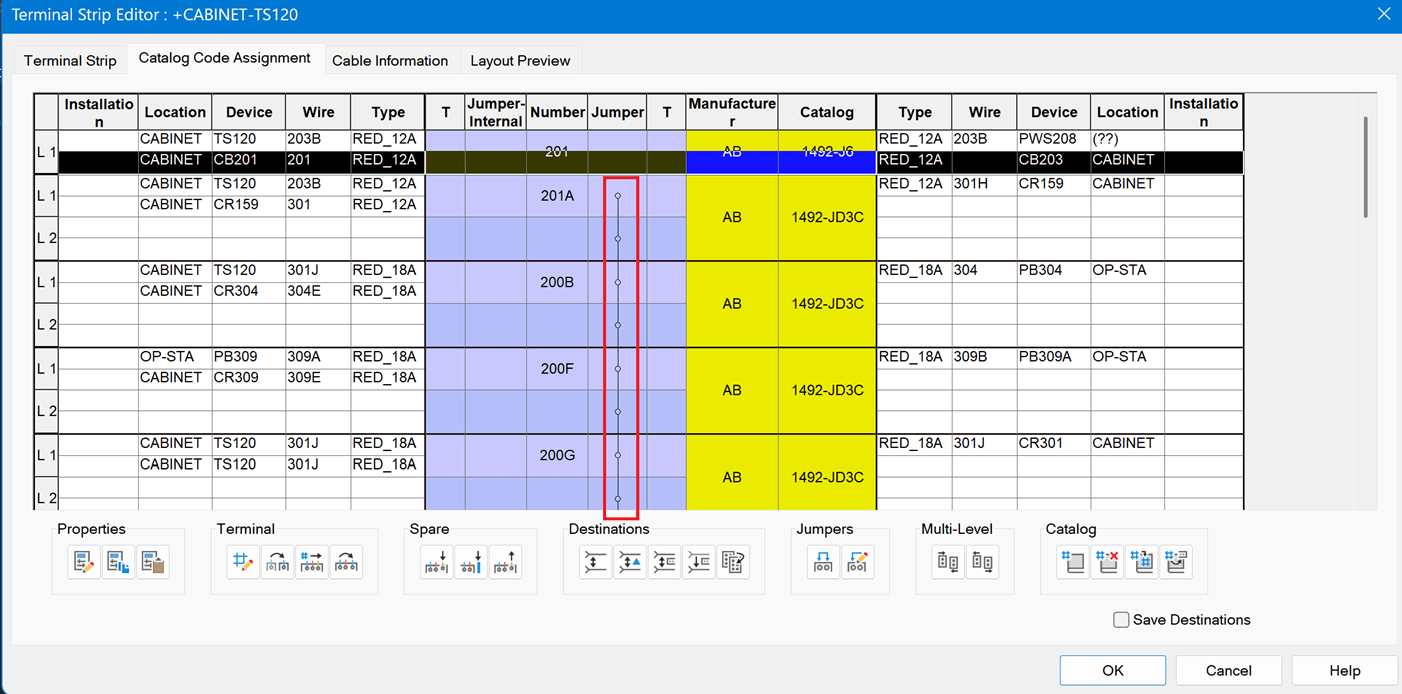

A jumper will be identified as shown below

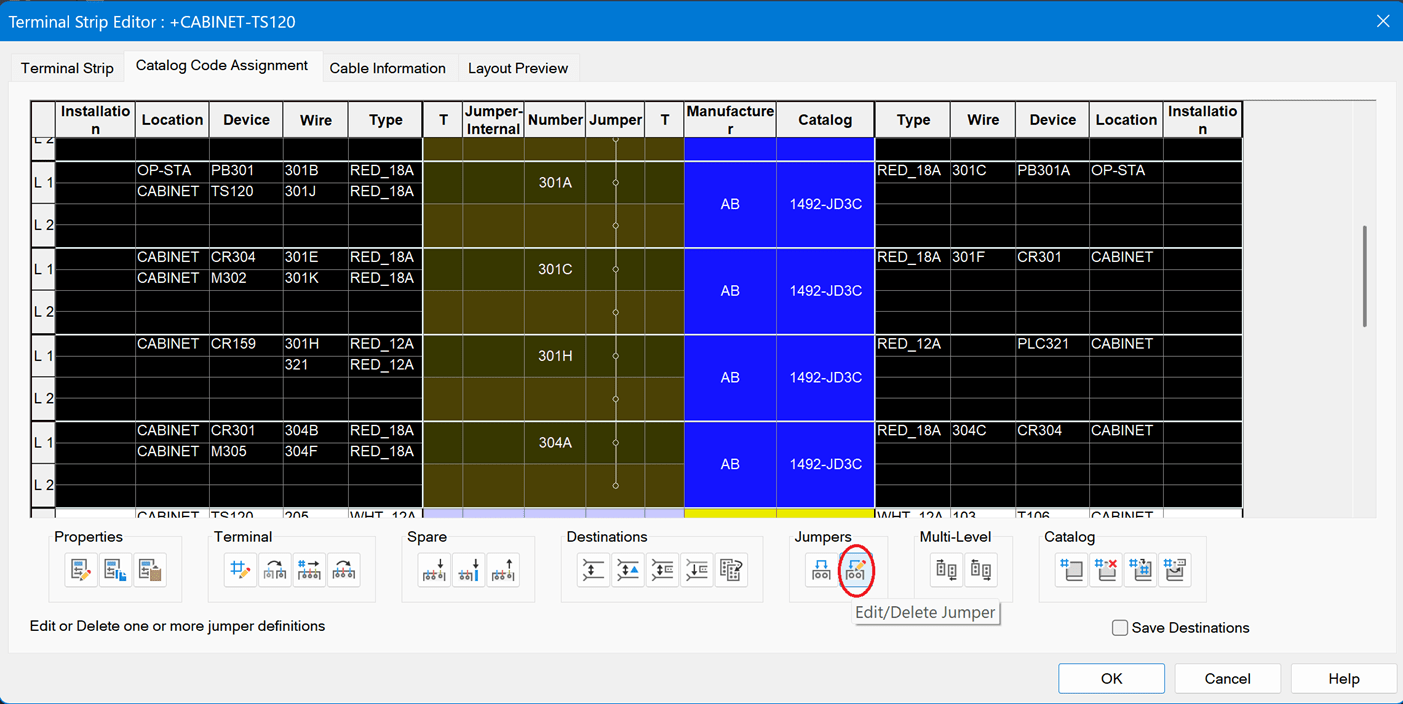

If jumper is assigned to wrong terminal go into the edit/delete jumper

Click Delete then OK then select the correct terminals that need to have jumpers assigned.
