Map 3D: Creating Multiline Labels for Connected Data Objects

If you’ve used Autodesk Map 3D over the years, you may remember a panel that helped create multiline labels for Feature Data Objects (FDOs). I used it recently and realized—it doesn’t work the way it used to.

The Issue

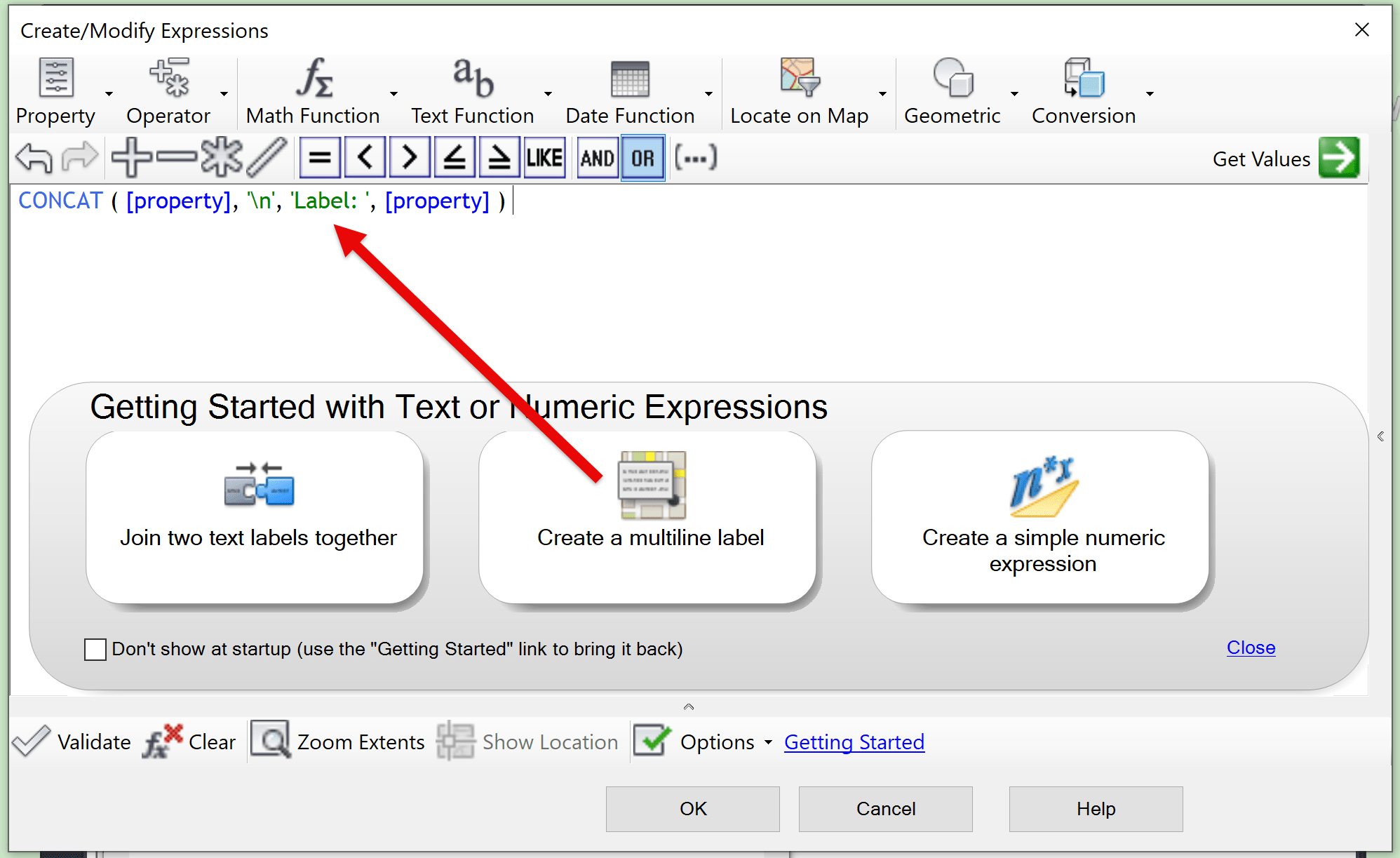

When you go to the Feature’s Style Label dialog box and select the Getting Started option at the bottom, you’ll see a sample called Create a multiline label.

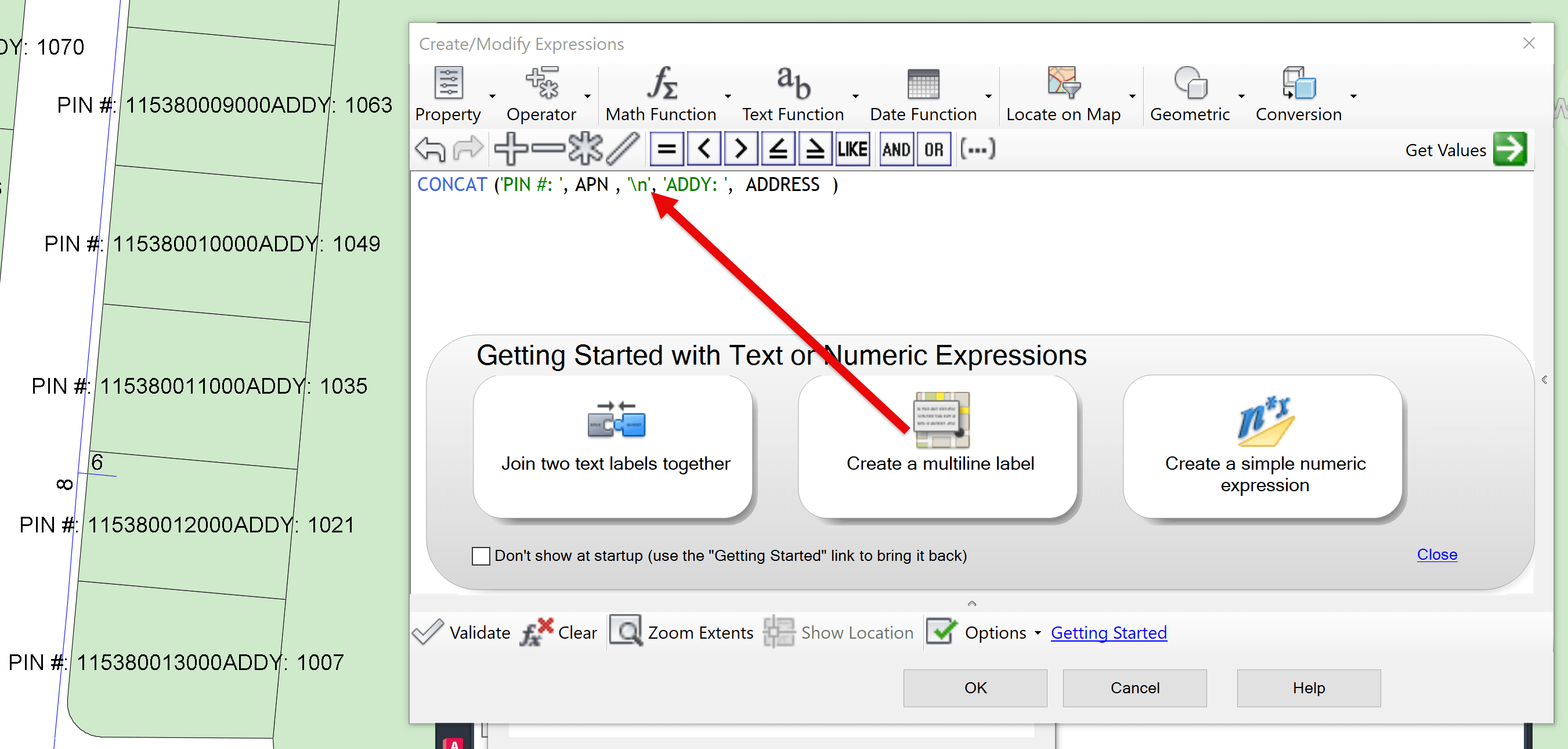

This sample uses the `CONCAT` function to combine multiple properties, along with the `\n` character to insert line breaks. In this example, a label show both the Property ID Number and the Address Number like this:

However, when used, the `\n` is ignored—so the label displays everything as a single line, not as separate stacked lines.

The Solution

While digging through the Autodesk help docs, I found this helpful note:

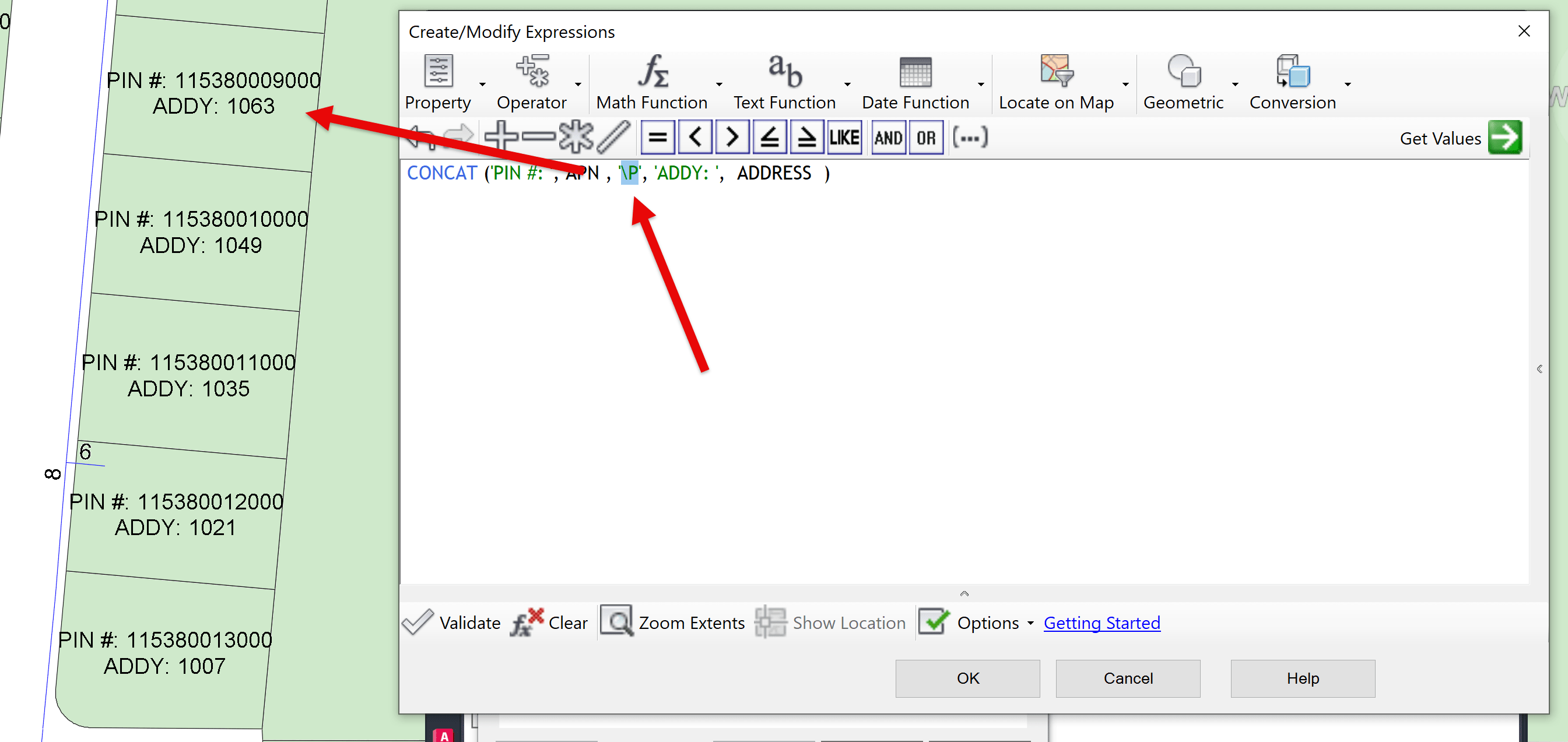

Made the simple swtich form `\n` with `\P` - Like this:

This correctly inserts a line break, and your label now stacks the values as expected!
